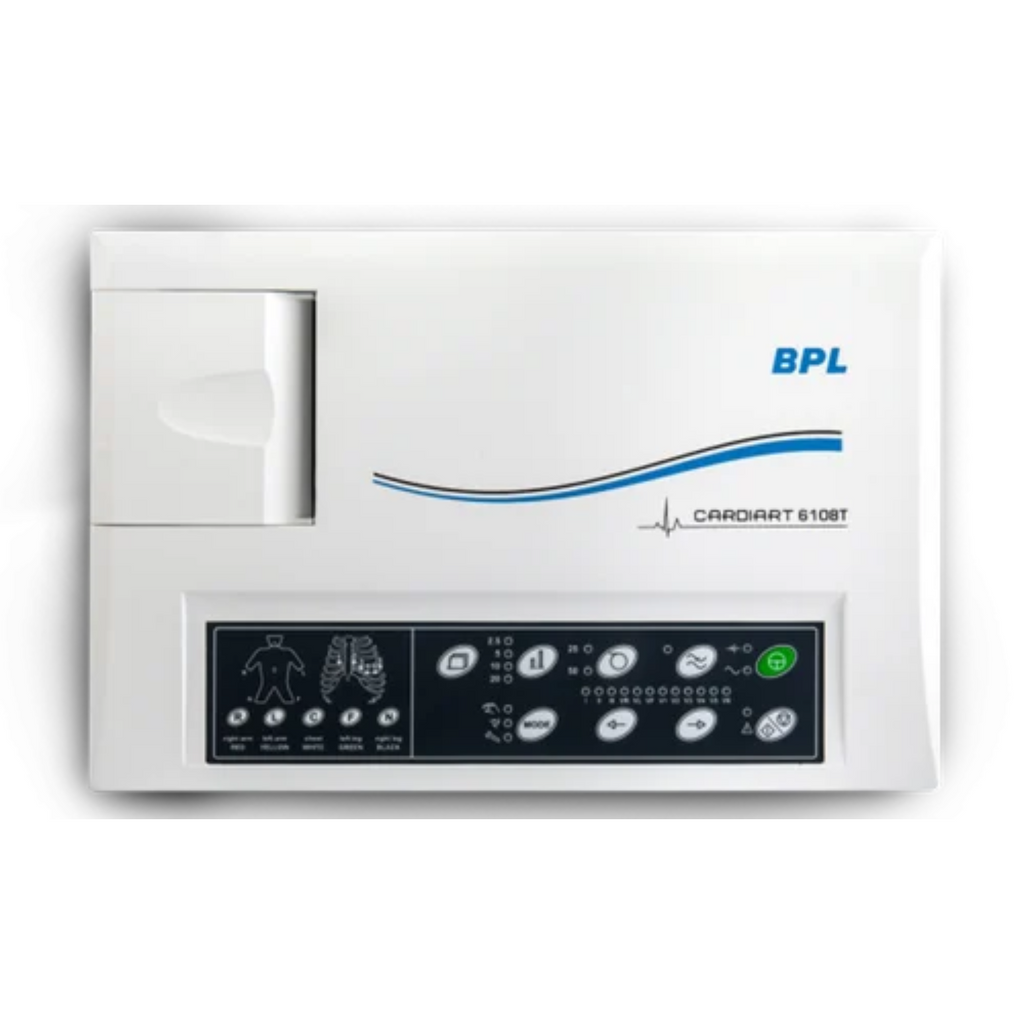

BPL 6108T ECG Machine Electrotherapy Device (Single Channel ECG)

• Power supply range: AC 230 V ± 10,
• Battery Capacity : 3 Hours in single channel mode (With a fully charged battery 200 complete ECGs are possible in auto mode with single channel print format)
• Battery charging indicator: Yes
• Battery low indication: Yes
• Power consumption: Less than 12 W

Technical Details

Brand	‎BPL Medical
Manufacturer	‎BPL Medical Technoloies
Model number	‎6108T
Number of Memory Sticks	‎1
Item Weight	‎1 kg 500 g
Product Dimensions	‎76.2 x 88.9 x 63.5 cm; 1.5 Kilograms
Item model number	‎6108T
Item Height	‎25 Inches
Item Width	‎35 Inches

Automatic and Manual Recording Modes

Manual mode enables the acquisition and printing of ECG recording in real time. Simultaneous acquisition is possible with automatic mode

Thermal Printing

Allows the printing of ECG on 50 mm paper using a high-resolution thermal print

Built-in Rechargeable Battery

Enables mains independent operations and provides battery use after

charging

Power Supply

Comes with dual power supply – mains and rechargeable internal battery

ECG Acquisation	10 bits; 500 Samples/sec
ECG Leads	Standard 12 Leads; Acquired 8 leads; Reconstructed 4 leads (III,aVR, aVL, aVF) with lead indication
Recording Sensitivity	Manual mode: 2.5- 5-10-20 mm/mv ; Auto Mode: Dependent on the signal strength
Filters	Mains interference/Muscle filter and Anti drift fiter
Operating Modes	Manual- acquisition and printing in real time; Auto- simultaneous acquisition
Parameter calculation	Yes, in Auto mode (Selectable)

Keyboard	Tactile Keypad with 9 function keys and 25 LED function indicators
Battery	Rechargeable NIMH9.6V, 1500mAH Battery built-in
Battery Capacity	3 Hours in single channel mode (with a fully charged batter 200 complete ECG's are possible in auto mode with single channel print format)
Recharging time	Approximately 14 Hours from total discharge
Recording system	Thermal printer, 8dots/mm; 48mm usable print width, in rolls: Height 50mm, Length 20m, gridded
Paper transport speed	25 or 50mm/sec
